Using FauxRPC to debug transcoding HTTP/JSON to gRPC

- 3 minutes read - 472 words

A Stack overflow question involving transcoding HTTP/JSON to gRPC, piqued my interest. I had a hunch on the solution but was initially dissuaded from attempting a repro because of the complexity:

  1. recreate proto
  2. implement stubs
  3. deploy gRPC-Gateway

I then realized that FauxRPC would probably address much of the complexity and it did.

I created foo.proto:

syntax = "proto3";

import "google/api/annotations.proto";
import "google/api/field_behavior.proto";

import "protoc-gen-openapiv2/options/annotations.proto";

// Was not defined in the question.
service Foo {
    rpc FetchResource(GetResourceRequest) returns (ResourceResponse) {
        option (google.api.http) = {get: "/v1/resource/{resource_id}/group"};
        option (grpc.gateway.protoc_gen_openapiv2.options.openapiv2_operation) = {
            summary: "Get Resource from group"
            description: "Retrieve resource info"
        };
    }
};

// Should be named FetchResourceRequest to match the RPC method name.
message GetResourceRequest {
  string resource_id = 1 [
    (google.api.field_behavior) = REQUIRED,
    (grpc.gateway.protoc_gen_openapiv2.options.openapiv2_field) = {
      description: "Resource UUID v4."
      example: "\"81042622-4f02-4e85-a896-172edd5381b6\""
    }
  ];

  ResourceFilter resource_filter = 2 [
    (google.api.field_behavior) = OPTIONAL,
    (grpc.gateway.protoc_gen_openapiv2.options.openapiv2_field) = {
      description: "\"RESOURCE_FILTER_FIRST\""
    }
  ];
}

// Empty response for demonstration purposes.
// Was not defined in the question.
// Should be named FetchResourceResponse to match the RPC method name.
message ResourceResponse {}

enum ResourceFilter {
  option (grpc.gateway.protoc_gen_openapiv2.options.openapiv2_enum) = {
    title: "Resource Filter"
    example: "\"RESOURCE_FILTER_FIRST\""
  };
  RESOURCE_FILTER_UNSPECIFIED = 0;
  RESOURCE_FILTER_FIRST = 1;
}

The proto depends on googleapis (Google’s repo containing definitions for Google’s services) and grpc-gateway (containing protoc plugins and protobuf sources).

My customary approach is to git clone these sources and then:

# Referenced Protobufs
GOOGLEAPIS="/path/to/googleapis"
GRPC_GATEWAY="/path/to/grpc-gateway"

protoc \
--include_imports \
--include_source_info \
--proto_path=${GOOGLEAPIS} \
--proto_path=${GRPC_GATEWAY} \
--proto_path=${PWD} \
--descriptor_set_out=${PWD}/foo.binpb \
${PWD}/foo.proto

Then, it’s straightforward to install and run FauxRPC:

go install github.com/sudorandom/fauxrpc/cmd/fauxrpc@latest

fauxrpc run \
--schema=${PWD}/foo.binpb \
--dashboard

2025/10/10 09:36:56 INFO fieldByName name=GetResourceRequest name=resource_id
FauxRPC (v0.16.0) - 1 services loaded, 0 stubs loaded
Listening on http://127.0.0.1:6660
Dashboard: http://127.0.0.1:6660/fauxrpc
OpenAPI documentation: http://127.0.0.1:6660/fauxrpc/openapi.html

Example Commands:
$ buf curl --http2-prior-knowledge http://127.0.0.1:6660 --list-methods
$ buf curl --http2-prior-knowledge http://127.0.0.1:6660/[METHOD_NAME]
2025/10/10 09:36:56 INFO Server started.

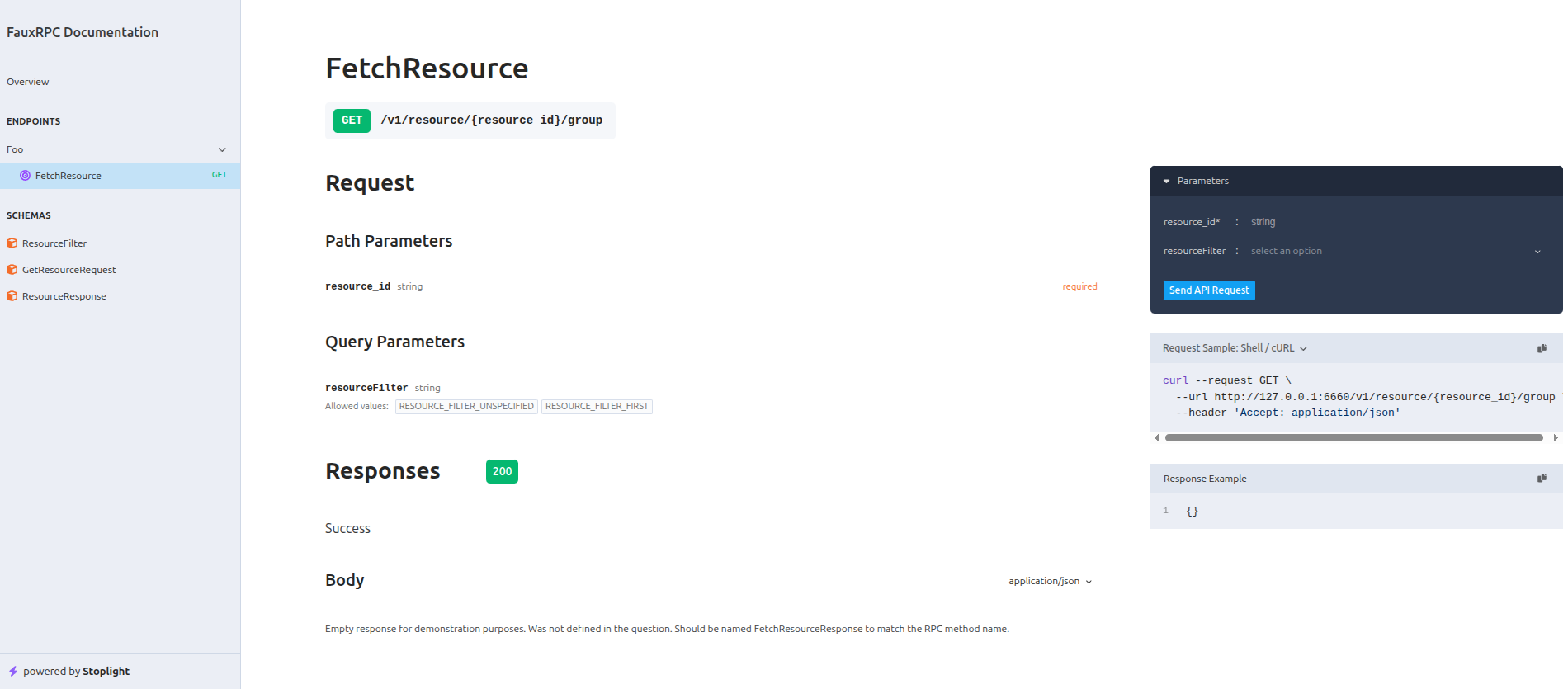

FauxRPC generates OpenAPI documentation on http://127.0.0.1:6660/fauxrpc/openapi.html#/

In this configuration, this includes an ENDPOINT Foo (reflecting the protobuf service name) which includes the FetchResource rpc mapped, per the google.api.http annotation, to a GET:

FauxRPC Documentation: FetchResource

What’s excellent is, not only, does the documentation include an example curl command but the documentation correctly documents the ‘Query Parameter(s)’ of resourceFilter and its allowed values e.g. RESOURCE_FILTER_FIRST.

Reassuringly this validated my hunch about the correct URL and, now with a FauxRPC server, we can attempt to invoke it:

Either append ? and the query string directly to the URL:

curl \
--silent \
--request GET \
--header "Accept: application/json" \
--url "http://127.0.0.1:6660/v1/resource/{resource_id}/group?resourceFilter=RESOURCE_FILTER_FIRST"

Yields {} (200)

Or use --get (instead of --request GET) and --data-urlencode to URL encode the query string

curl \
--silent \
--get \
--header "Accept: application/json" \
--data-urlencode "resourceFilter=RESOURCE_FILTER_FIRST" \
--url "http://127.0.0.1:6660/v1/resource/{resource_id}/group" \
--output /dev/null \
--write-out "%{response_code}\n"

Yields 200 (success)

For each invocation, FauxRPC should log:

[] 2025/10/10 - 09:52:06 | 200 |     728.247µs |       127.0.0.1 | GET      "/v1/resource/resource_id/group?resourceFilter=RESOURCE_FILTER_FIRST"
